UAV servo and actuator selection: torque, feedback and control-surface sizing

Servo selection sits between two guides already published on this site: the motor KV guide covers the propulsion motor that moves the aircraft through the air, while this guide covers the smaller motors that move the aircraft's control surfaces and mechanisms through their range. The two share sizing logic, torque, thermal limits, gear reduction, but servos add a layer most propulsion motors do not have: position feedback and a command signal from the flight controller. The communication protocols guide covers the signal side in detail; here we focus on the electromechanical side and the numbers that matter when you write the purchase order.

Why servo selection is a flight-safety decision

A control surface that does not move is not a nuisance, it is a failure mode. On a 25 kg fixed-wing UAV flying at 30 m/s, the elevator hinge moment can exceed 4 N·m in a dive, and the servo must hold that load continuously without stalling, stripping teeth or drifting from the commanded position. Undersized servos are one of the most common root causes of control loss in homebuilt and lightly-specified UAVs, because the failure is gradual: the surface moves fine in a bench test, then a hard maneuver loads the hinge past the servo's torque ceiling and the surface blows back. The procurement question is not "what servo fits the servo bay" but "what torque, speed and precision does this surface need, and what margin does the servo hold above it." The rest of this guide answers that question with numbers.

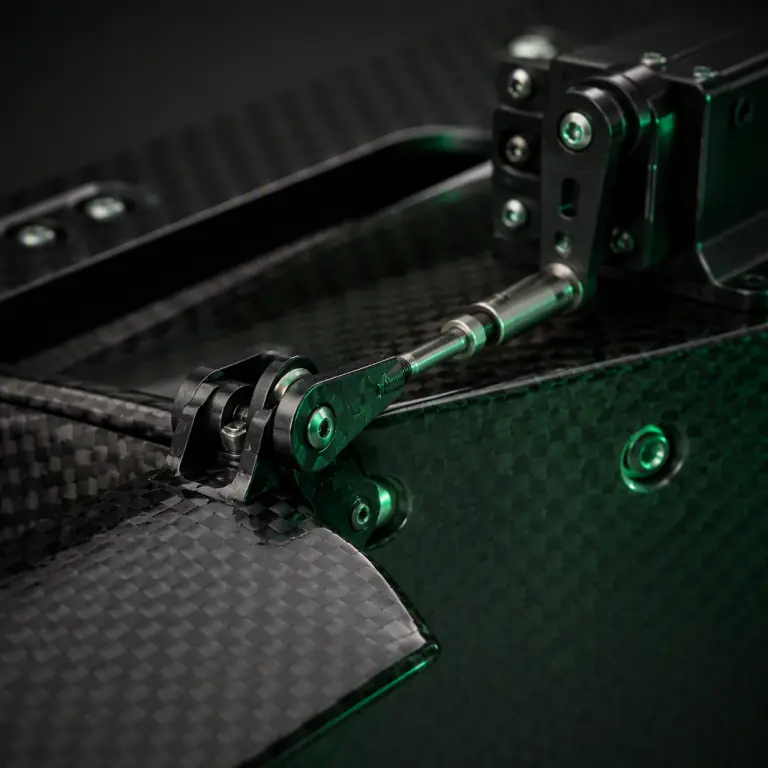

Hinge-moment math: sizing torque before you look at a datasheet

The starting point for any control-surface servo is the hinge moment, the aerodynamic torque the surface generates around its hinge line at the aircraft's maximum speed. The simplified engineering form is:

Hm = q × S × c × C_h

• q = dynamic pressure = 0.5 × ρ × V² (at sea level, ρ ≈ 1.225 kg/m³)
• S = control surface area (m²), measured aft of the hinge line
• c = mean chord of the surface (m)
• C_h = hinge moment coefficient, typically 0.02-0.05 for a plain flap-type surface; use the upper end for high-deflection or large-chord flaps

Worked example: an elevator with S = 0.05 m², c = 0.12 m and C_h = 0.035 at V = 40 m/s gives q = 0.5 × 1.225 × 1600 ≈ 980 Pa, so Hm ≈ 980 × 0.05 × 0.12 × 0.035 ≈ 0.21 N·m ≈ 2.1 kg·cm. That is the bare hinge moment. The servo torque requirement is Hm divided by the mechanical advantage of the linkage (horn radius ÷ servo arm radius) and then multiplied by a factor of safety. The practical convention for UAV control surfaces is 2×-3× to cover gusts, degraded surfaces and control-law overshoot. A 2.1 kg·cm hinge moment with a 1:1 horn ratio and 3× margin becomes a 6.3 kg·cm minimum servo torque. A servo that meets the number with 20% headroom, roughly 8 kg·cm, is a defensible choice; a servo that only meets the bare hinge moment is a test flight waiting to fail. For tilt mechanisms on VTOL aircraft the load is gravitational rather than aerodynamic. The actuator lifts a motor-and-propeller assembly against gravity, so the sizing input is mass × moment arm × dynamic factor (typically 1.5×-2× for in-flight tilt transients). The VTOL transition components guide covers that load case in depth.

Coreless vs core vs brushless: what the three servo classes deliver

Servo motors come in three construction classes, and the differences are mechanical, not marketing:

Class	Typical torque range	Strengths	Weaknesses
Core (brushed iron-core)	1-8 kg·cm	Cheapest, simple, adequate for non-critical surfaces and payload release	Slower response, wider deadband, brushes wear, cogging at low speed
Coreless (brushed, ironless)	2-15 kg·cm	Low rotor inertia, fast response, smooth low-speed control, good value for mid-size surfaces	Brushes still wear; heats faster under continuous stall loads
Brushless (BLDC servo)	5-60+ kg·cm	No brush wear, high continuous torque, long life, best thermal endurance	Most expensive; needs a driver circuit that adds a little current draw at idle

The class choice follows duty cycle more than peak torque. A payload release mechanism that fires a few times per sortie can use a core servo, the payload release mechanisms guide uses them exactly that way. A tilt actuator or a large elevator that holds load for the entire flight wants coreless at minimum and brushless where the mission is long-endurance or the surface is flight-critical. The lifetime difference is real: a brushed servo's commutator is rated for roughly 10,000-50,000 hours of light use but far fewer under sustained load, while a brushless servo's limiting factor is the bearing, not the motor.

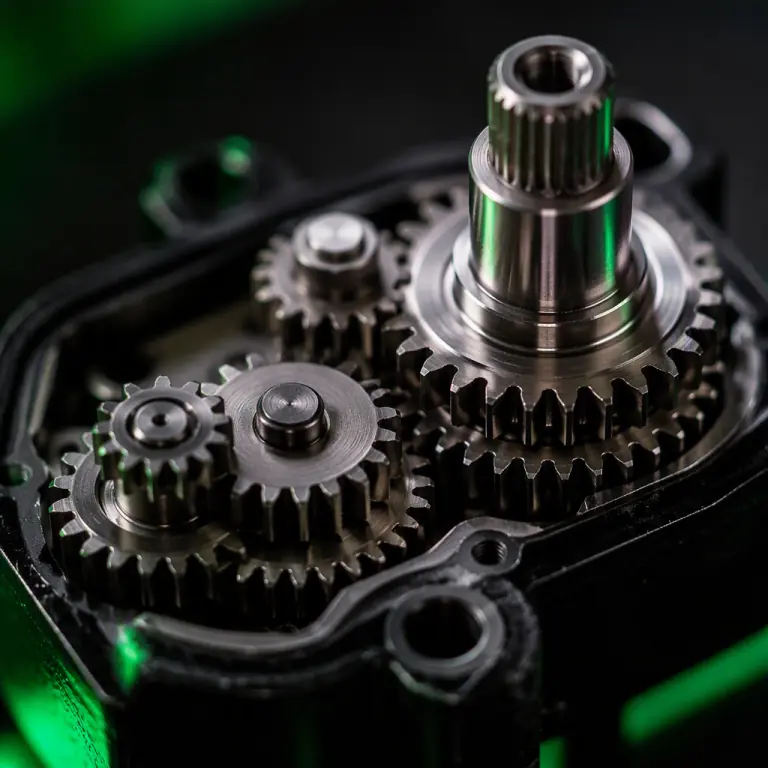

Gear trains: metal vs nylon, and what stripping really means

The gear train converts the motor's high-speed, low-torque output into the servo arm's low-speed, high-torque motion, and it is the first component to fail when torque is undersized. Three material tiers dominate UAV servos:

• Nylon / composite gears. Light, quiet and cheap, they deform before they break, which protects the motor and the surface linkage by acting as a mechanical fuse. They are acceptable for non-critical, low-load surfaces but wear quickly under vibration and grit, and a stripped nylon tooth in flight is still a dead surface.
• Steel gears. The standard for flight-critical surfaces: hard-wearing, predictable backlash, survives repeated stall loads. The weight penalty is small at UAV scale (a full steel train adds roughly 10-20 g on a 40-60 g servo).
• Titanium gears. Specified where a servo must shed every gram and still survive hard landings, common on high-end FPV and VTOL airframes. Cost is the only real objection.

Backlash, the free play between meshed teeth, is the number that matters for precision. A typical metal train has 0.5-1.5° of backlash at the output arm; cheap nylon trains can show 2-3°. On a high-aspect-ratio wing, 1° of elevator backlash at 30 m/s translates into a noticeable pitch wobble that the autopilot then fights. If the surface must hold position precisely (tilt, flaps, camera mechanisms), ask for the backlash spec and treat anything above 1.5° as a warning flag.

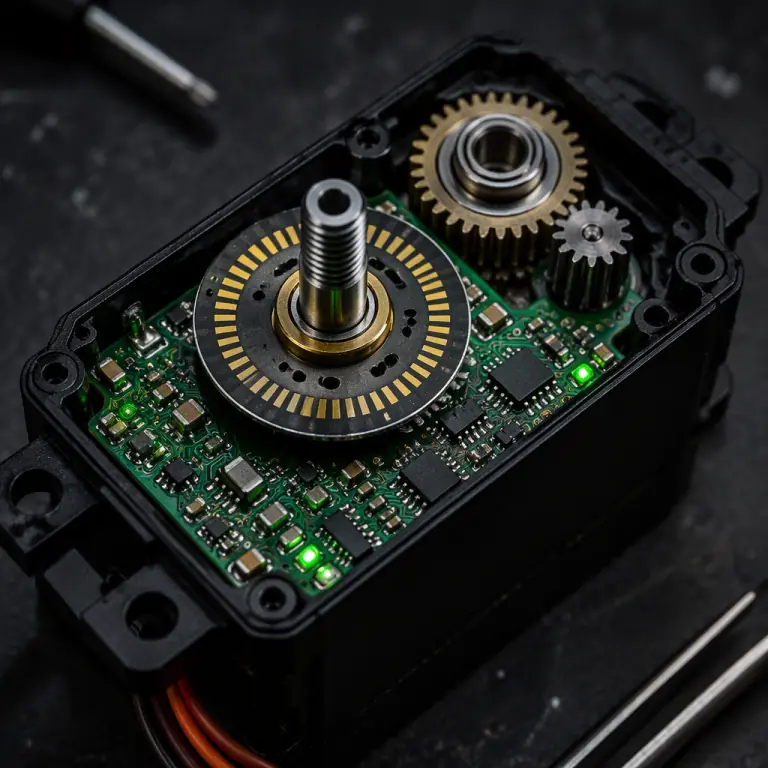

Feedback: potentiometer vs magnetic encoder

Every servo is a closed-loop position controller internally. The motor runs until the feedback element reports the commanded position. The feedback element sets the precision ceiling:

• Potentiometer (analog). A resistive track and wiper measure output-arm angle. Cheap and proven, but the wiper wears, the track degrades with vibration, and resolution is limited by electrical noise. Typical usable resolution is 8-10 bits, fine for a rudder, marginal for a gimbal-style mechanism. A worn pot is the classic cause of a servo that "hunts" or drifts over time.
• Magnetic encoder (digital). A magnet on the output shaft and a Hall-effect or magnetoresistive sensor read the angle without contact. No wear, no wiper noise, 12-16 bit resolution in practice, and stable centering over the servo's life. Digital servos with magnetic encoders also support tighter deadband. The deadband is the angular window in which the servo ignores small command errors: 1-2 µs of pulse width on a digital servo vs 5-8 µs on an analog unit. Tight deadband means the surface sits exactly where commanded instead of hovering in a small dead zone, which directly improves autopilot trim and reduces control-surface buzz.

The decision rule: any servo on a flight-critical surface or a precision mechanism (tilt, camera, release) should be digital with a magnetic encoder. Analog potentiometer servos remain acceptable for non-critical surfaces where cost per channel matters, but they should be treated as a maintenance item. Pot wear is a scheduled replacement, not a surprise.

Speed, voltage and current: reading the dynamic numbers

Torque is the headline number, but three dynamic specifications decide whether the servo can actually use it:

• Speed. Quoted as seconds per 60° at a reference voltage (typically 0.08-0.15 s/60° for control-surface servos). A fast surface is not automatically better, speed beyond what the control law commands just adds current draw and mechanical wear. The requirement comes from the aircraft's control bandwidth: a 25-35 m/s fixed-wing needs roughly 0.10-0.15 s/60° on elevator and aileron; a slow-flying multirotor's camera tilt can be 0.3 s/60° and still feel responsive.
• Operating voltage. 4.8-6.0 V is the legacy standard; HV servos run 6.0-8.4 V and deliver proportionally more torque and speed. The airframe's servo rail voltage must match. Running an HV servo on a 5 V rail leaves half its torque unused, while feeding a 5 V servo from an 8.4 V rail risks smoke. Specify the rail voltage first (the connectors and wiring guide covers servo rail design), then match servos to it.
• Current draw. A digital servo can draw 0.5-2 A in normal maneuvering and 3-10 A at stall. Three stalled surfaces on one 5 V BEC rated for 5 A means brownout. The classic cause of "the whole aircraft twitched." The servo rail must be sized for the sum of simultaneous worst-case currents, not the idle current, and the flight controller's power supply must be isolated from the servo rail. The payload power budgeting guide covers rail design and sequencing in detail.

Signal compatibility: PWM, SBUS and the flight controller

UAV servos are commanded by the flight controller's servo outputs, and compatibility is a five-minute check that prevents a two-hour integration session:

• PWM. The universal standard: a 1-2 ms pulse repeated at 50 Hz (analog) to 333 Hz (digital). ArduPilot and PX4 both output PWM on their servo channels; a digital servo accepts the full 50-333 Hz range, while an analog servo must not be driven above ~50 Hz or it overheats. This is the single most common servo damage mode in UAV builds, an analog servo on a 333 Hz output rail.
• SBUS and serial bus servos. Some servos accept SBUS or other serial protocols directly, which reduces wiring on multi-surface aircraft. In practice, most UAV flight controllers still drive servos via PWM, and serial-bus servos add a decoder and a failure mode; specify PWM unless the airframe integrator explicitly designs for serial servos. The communication protocols guide compares the signal standards in detail.
• Signal rail isolation. The flight controller's servo outputs should be opto-isolated or powered from the servo rail, not from the autopilot's logic supply. A stalled servo pulling 8 A must not reset the autopilot. This is a wiring decision, covered in the connectors and wiring guide, and it is non-negotiable on flight-critical surfaces.

Redundancy: dual servos, split surfaces and failure behavior

A single servo driving a flight-critical surface is a single point of failure. The standard mitigations, in increasing order of cost and complexity:

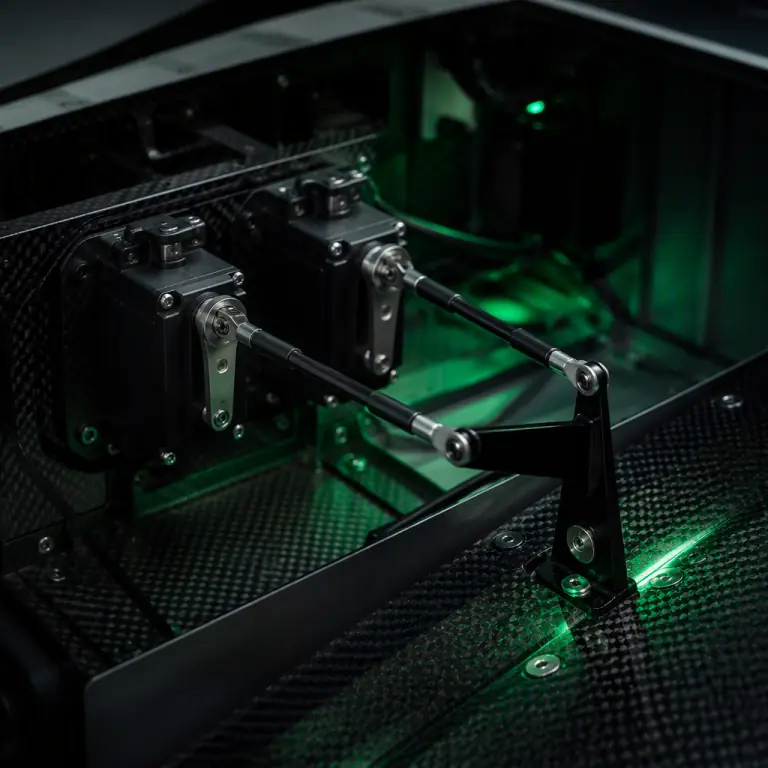

• Dual servos on one surface. Two servos drive the same surface through separate horns and a shared linkage or a bushed torque tube. With matched servos and a shared command, the pair shares load; if one jams, the other can still move the surface if the linkage allows (a compliant coupling or slotted horn). This is the common configuration on mid-size VTOL and fixed-wing aircraft, the VTOL transition guide shows it on tilt mechanisms.
• Split surfaces. The elevator or rudder is split into two independently-driven halves, each on its own servo channel. Losing one half leaves the aircraft controllable, at reduced authority, and the autopilot can trim against the asymmetry. This is the configuration on most twin-boom and large fixed-wing UAVs.
• Independent channels. Each redundant servo is on its own flight-controller output and its own power feed, so a shorted servo or a tripped fuse does not take down both halves. ArduPilot and PX4 both support per-surface output groups; the ArduPilot vs PX4 comparison covers how each stack handles servo output assignment and failsafe outputs.

The redundancy discussion belongs in the design phase, not the spare-parts order. Specify the failure behavior you want, "the aircraft can still land with one half of the elevator", and the airframe designer selects the servo count. A procurement manager buying servos without asking which surfaces are flight-critical will buy the wrong count every time.

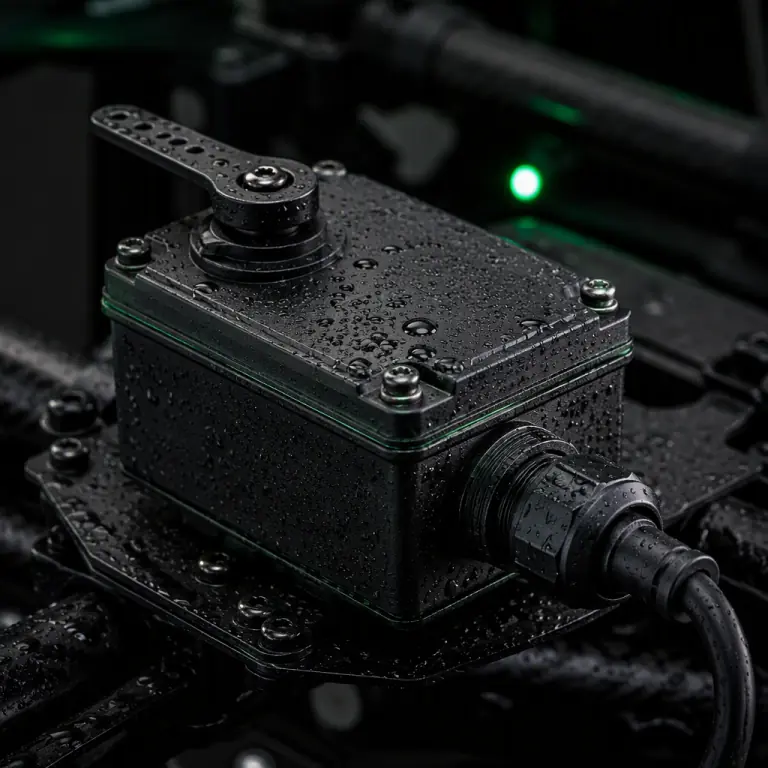

Environmental ratings: temperature, moisture and vibration

A servo is a sealed little gearbox with electronics inside, and the environment decides how long it survives:

• Temperature. Look for an operating range of at least -20°C to +70°C. Below -20°C, standard servo grease stiffens, increasing current draw and slowing response, a real issue for cold-climate operations (the cold-weather components guide covers low-temperature actuation in depth). Above 70°C, brushless servos hold torque far better than brushed units because there is no commutator to soften.
• Moisture and dust. An unsealed servo in a dusty field environment ingests grit through the output shaft seal and dies an early death. For exposed surfaces, landing gear doors, external tilt pods, specify IP54 or better; the IP-rated components guide explains what each rating level actually protects against.
• Vibration. Random vibration from the airframe and propulsion system wears potentiometer tracks and loosens gear meshing. If the servo is mounted near the motor or propeller plane, ask for a vibration-tested unit and check the mount's damping; the propeller balancing and vibration guide covers the airframe-side fix.

Servo procurement checklist

• Torque with margin. Compute hinge moment from the aircraft's maximum speed and surface geometry, divide by the linkage mechanical advantage, and multiply by 2×-3×. Never buy to the bare hinge moment.
• Motor class by duty. Coreless or brushless for flight-critical and continuously-loaded surfaces; core servos only for intermittent mechanisms.
• Gears. Steel (or titanium for weight-critical) on flight surfaces, with backlash under 1.5° at the arm.
• Feedback. Digital with magnetic encoder on flight-critical and precision mechanisms; analog pots are a scheduled-maintenance part.
• Speed and voltage. Match s/60° to the control bandwidth, match operating voltage to the servo rail, and size the rail for summed stall currents.
• Signal. Confirm PWM range (50-333 Hz) against the flight controller's output rate; analog servos must never see a digital refresh rate.
• Redundancy. Define which surfaces are flight-critical and specify dual-servo or split-surface configurations with independent channels and feeds.
• Environment. Operating range -20°C to +70°C minimum, IP54+ for exposed surfaces, vibration-tested units near propulsion.
• Test evidence. Demand a bench test log: torque at operating voltage, speed, deadband and current draw measured on the actual units, not the datasheet's best case.

What a servo failure actually costs, by the stage it is found

Servo problems do not all cost the same. The same stripped gear train costs a few tens of dollars if it is caught on a bench jig during incoming inspection, and a five-figure sum if it surfaces as an in-flight surface flutter during a customer acceptance flight. The table below is the cost structure we quote against when a buyer asks why we test servos to a written procedure rather than simply passing through the datasheet numbers.

Stage the defect is found	Typical cost per incident (USD)	What drives the number	Who usually absorbs it
Incoming inspection at component level	15 - 40	One unit scrapped, 20 minutes of technician time, no schedule impact	Supplier, within the agreed AQL
Airframe integration bench test	400 - 1,200	Re-open the surface linkage, re-rig, re-zero, repeat the bench log	Supplier if unit-attributable, otherwise shared
Environmental qualification re-run	1,500 - 6,000	Vibration and thermal soak re-run on the airframe, chamber time, witness hours	Supplier if the defect is a component escape
Customer acceptance flight	8,000 - 25,000	Flight crew and chase time, aircraft downtime, rescheduled acceptance, re-certification paperwork	Supplier almost always, plus the relationship
Field failure inside warranty	2,500 - 9,000 per claim	Retrieval, teardown and failure analysis, replacement, root-cause report, fleet inspection of every unit from the same lot	Supplier under the RMA terms
In-service failure outside warranty	Not payable	Operator bears the loss, the incident review and the reputational cost; the supply relationship ends	Operator

The shape of this table is the argument for first-article testing. A 40-dollar screen at incoming inspection is buying insurance against a 25,000-dollar escape, and the ratio does not depend on the servos being expensive. It only depends on the test happening before the airframe is closed up.

In-service servo checks: what to measure, at what interval, and what counts as a pass

A servo does not fail cleanly. Gear backlash grows, deadband widens, encoder resolution degrades at the extremes of travel, and current draw creeps up as friction rises. None of these show up as a hard failure until the surface can no longer hold position under load. The check ladder below is the in-service schedule we write into delivery documentation for flight-control servos; every interval is measured in flight hours, and every row has a pass criterion you can defend in an audit.

Interval (flight hours)	Check	Pass criterion	If it fails
Pre-flight, every flight	Full-travel sweep with the surface loaded by hand, both directions	Smooth travel, no notch or hesitation, no audible gear rattle at centre	Do not launch; pull the unit for bench inspection
25 h	Backlash at the control horn, measured with a dial indicator	Under 1.5 degrees at the arm on flight-critical surfaces	Re-rig the linkage once; if backlash returns within 10 h, replace the gear train
50 h	No-load current draw at nominal rail voltage, all channels logged	Within 15 percent of the first-article baseline for that unit	Trend it: one 15 percent step is wear, a doubling is a failing motor or bearing
100 h	Centring repeatability, ten cycles to neutral from each side	Return to neutral within 0.5 degrees measured at the arm	Re-calibrate the feedback zero; replace if the error reappears
250 h	Bench torque at operating voltage, compared with the original acceptance log	At least 85 percent of the first-article torque figure	Replace the unit; do not extend the interval
Any hard landing or rotor strike	Full bench test on every servo on the affected arm, regardless of hours	All of the above, plus a visual on the output shaft for runout	Replace, do not re-install, even if the unit passes electrically

The 85 percent torque threshold at 250 hours is the number that matters most in practice. Below that point the servo still moves, still passes a pre-flight sweep, and still feels correct on the ground, which is exactly why fleets that check only for "does it still work" fail surfaces in the air rather than on the bench.

Who signs off which servo evidence

Servo acceptance is where aircraft programmes most often discover, late, that nobody agreed who was going to prove what. The matrix below is the split we write into a servo supply agreement. The right-hand column is the part that prevents disputes: it names the rows that cannot be witnessed on a sample, because the evidence is destructive, cumulative, or unique to the airframe being shipped.

Evidence item	Owner	Delivered as	Sample or 100 percent
Torque at operating voltage, both directions	Supplier	Per-unit bench log with the unit serial	100 percent
Speed (seconds per 60 degrees) at nominal and low rail voltage	Supplier	Per-unit bench log	100 percent
Deadband and centring repeatability	Supplier	Per-unit bench log, ten-cycle run	100 percent
Backlash at the output arm	Supplier	Per-unit measurement in degrees	100 percent on flight-critical units
Vibration sweep to the programme spectrum	Supplier	Chamber report by lot, with the spectrum overlaid	Sample per lot
Thermal soak to the declared operating range	Supplier	Chamber report, with pre- and post-soak torque	Sample per lot
Endurance run to the declared duty cycle	Supplier	Report with post-run torque and backlash drift	Sample, and cannot be witnessed per unit because the units are consumed
Gear-train material and hardness certificates	Supplier sub-tier	Mill certs plus hardness test on the finished gear	Per lot, not per unit
Signal compatibility with the specified flight-controller output	Joint, supplier runs, buyer witnesses	Sign-off record naming the flight controller and firmware version	Once per configuration, and again on any change
Airframe-level rigging and surface travel	Buyer	Buyer acceptance record	Per aircraft, cannot be a supplier claim

Two rows in that matrix are the ones buyers most often assume are the supplier's problem and are not. Airframe-level rigging is the buyer's, because it depends on linkage geometry the supplier never sees. Signal compatibility is joint, because it depends on both the servo firmware and the flight-controller output configuration, and it has to be re-signed on any firmware change on either side. Programmes that leave both rows unassigned typically discover the gap during acceptance, when neither party can show a record.

Two reference builds and the servo decisions inside them

Servo selection reads as theory until it collides with a mass budget and a duty cycle. Both of the platforms we publish build documentation for made a servo or actuator decision that was driven by numbers rather than by a catalogue page.

• Eight-rotor agricultural sprayer. The airframe runs eight 12S motors drawing roughly 80 A per arm on a 400 A-rated distribution board, and the full build is written up at our heavy-lift agriculture platform. The servo-relevant lesson is the rail: at 12S the servo BEC has to survive the summed stall current of every surface servo plus the spray-valve actuator firing at the same moment. A spray pass on that aircraft draws 3,000 to 4,000 W and the pump and valve actuation lands as a step load, so the servo rail budget has to be computed with the valve open, not at idle.
• VTOL LiDAR mapping aircraft. A 120-minute fixed-wing VTOL carrying a 5 kg sensor pod, documented at our LiDAR mapping platform. On this configuration the servo problem is not torque but thermal: a VTOL transition holds the tilt actuators at near-continuous load for 20 to 40 seconds while the lift rotors are still working, and that duty is the one that exposes a core servo sized on a stall-torque datasheet. The tilt actuators on that build are specified on continuous thermal duty, not peak torque.

Both cases point the same way. Specify the duty cycle before the torque number, because a servo that survives the load but not the thermal profile reads as an adequate unit on paper and as a growing deadband in service. If you have the surface geometry and the duty cycle, we will size to both and send the bench plan with the quotation.

The bottom line: servos are the least glamorous, most safety-critical actuation components in a UAV, and they are sized with arithmetic, not intuition. Compute the hinge moment, apply margin, choose the motor and gear class for the duty cycle, match signal and voltage to the flight controller, and specify redundancy before you need it. EMS Drone supplies matched servo and actuator packages. Torque-specified for your control surfaces, with the gear, feedback, signal and redundancy options your airframe requires. Send your surface geometry and flight speeds, and we will respond with the servo specification, wiring rail design and a bench test plan.
