Configure UAV platforms purpose-built for close-range structural assessment: thermal imaging, LiDAR scanning, corrosion detection and high-resolution visual inspection of bridges, power lines, pipelines and towers.

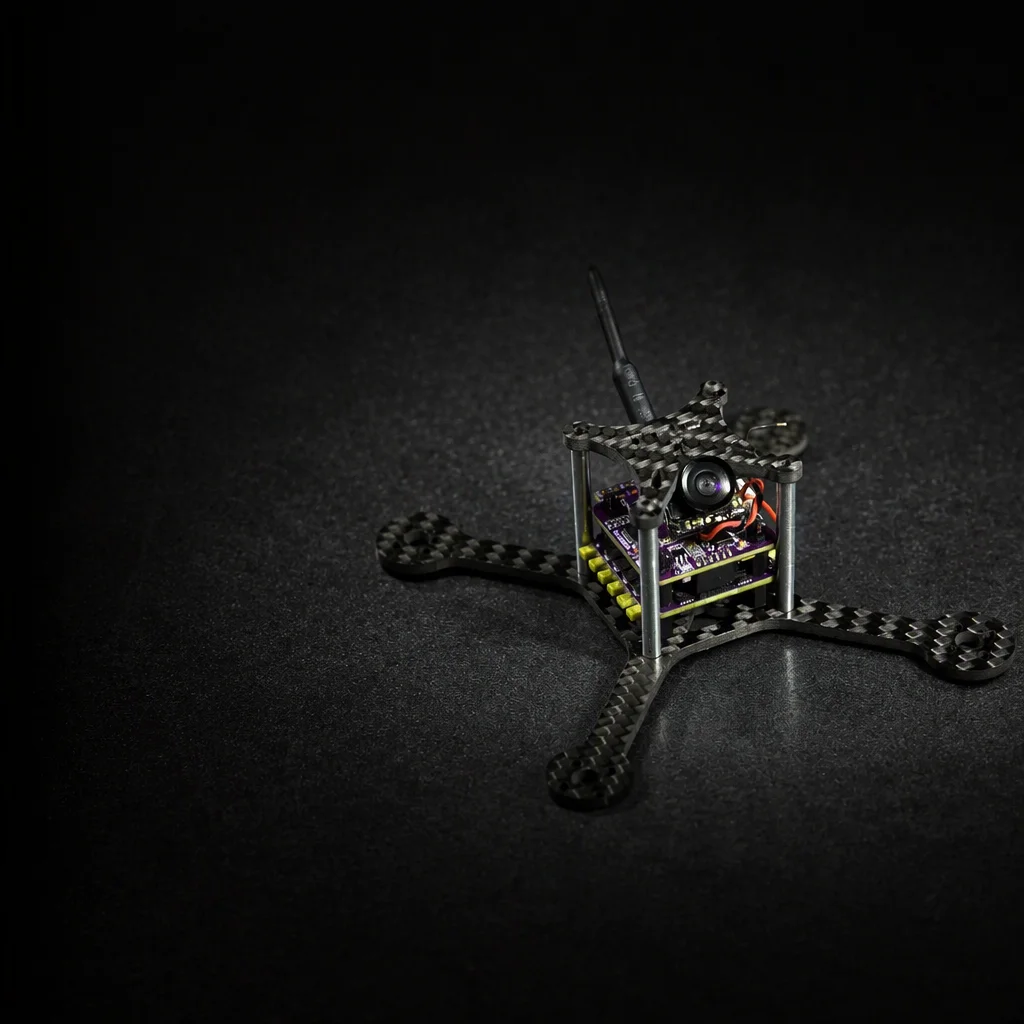

Concept illustration
Industrial inspection covers bridges, power transmission towers, wind turbine blades, offshore platforms, pipelines, chimney stacks and confined spaces. Accessing these structures with scaffolding, rope teams or elevated platforms introduces safety risk, operational downtime and per-inspection costs that quickly exceed the price of a capable UAV platform. The right aircraft captures thermal gradients, sub-millimeter cracks, corrosion blooms and geometric deformation without putting a person at height. Achieving this requires more than a consumer drone with a clip-on camera; it requires a component stack engineered for precision hover in turbulent conditions, high-bandwidth payload integration and flight endurance measured in hours rather than minutes.
The component architecture must balance hover precision, sensor bandwidth, environmental resilience and operational safety.
A flight controller with RTK GNSS support, precision loiter algorithms and robust altitude hold is non-negotiable. Look for dual IMU redundancy, vibration-damped sensor mounting and EKF2/3 fusion capable of maintaining centimeter-level position hold in gusting conditions near structures. PX4 and ArduPilot architectures both offer inspection-tuned parameter sets for close-proximity flight.
Radiometric thermal cameras (640x512 resolution minimum) capture thermal anomalies across electrical infrastructure, insulation gaps and structural hot spots. Paired with a 20MP+ RGB camera on a stabilized 3-axis gimbal, the dual-sensor stack provides both wide-context visual documentation and pixel-level thermal data for engineering reports. LiDAR modules add geometric precision for deformation analysis and digital twin generation.
Inspection missions covering multiple tower spans or a full bridge deck require flight times exceeding 35 minutes with payload. This demands large-diameter low-KV motors, high-voltage (6S-12S) power systems, and efficient propeller designs optimized for hover efficiency rather than top speed. Hybrid fixed-wing/VTOL platforms extend coverage to linear corridor assets like pipelines and power line runs.
Industrial sites rarely offer calm conditions. Components must be rated for sustained wind speeds of 12 m/s or higher, with IP53+ protection against dust and light moisture. ESCs should include active braking and rapid-response firmware to counteract sudden gusts near structures. Redundant power paths and independent BEC circuits prevent single-point electrical failures during critical close-inspection maneuvers.
Each inspection profile pulls from the same component categories with different performance weightings.
| Flight Controller | Pixhawk 6X / Cube Orange+ with dual IMU, RTK GPS module, and ArduPilot firmware with precision loiter and terrain-following enabled |
|---|---|
| Propulsion | 5008-380KV or 6015-180KV motors matched to 18-22 inch carbon fiber propellers; 6S-12S LiPo/Li-Ion battery with capacity targeting 40+ minute hover endurance under payload |
| Gimbal & Payload | 3-axis stabilized gimbal carrying dual thermal (640x512, 30Hz) and 24MP RGB camera; optional LiDAR payload (Livox Mid-40 or equivalent) for point-cloud capture |
| Telemetry & Comms | Dual-band 868/915 MHz telemetry radio with AES encryption; 4G/LTE backup link for BVLOS corridor operations; onboard SD logging with redundant storage |
| Airframe | 650-850mm wheelbase quadcopter or X8 coaxial configuration; foldable arms for transport; vibration-dampened payload rail and isolated IMU mounting plate |
| Ground Station | Mission Planner or QGroundControl with survey grid planning, real-time thermal overlay, and geotagged image export for inspection reporting workflows |
These configurations represent proven starting points; every build is adapted to the specific asset type, inspection interval and reporting requirement.
Medium-frame (650-750mm) quadcopter with RTK GPS, dual thermal/RGB gimbal payload, and precision-hover FC. Designed for close-range underside deck scanning, bearing inspection and concrete spall detection. Operates at 3-15 meter standoff distances with collision-tolerant propeller guards. Typical mission endurance of 35-45 minutes per battery set.
Hybrid VTOL airframe with forward-flight efficiency for linear corridor patrol. Covers 30-80 km of transmission line per flight at 16-18 m/s cruise speed. Carries high-resolution RGB camera with 40MP sensor for insulator defect detection, vegetation encroachment mapping and tower structural survey from 20-50 meter standoff. RTK/PPK geotagging ensures defect coordinates are survey-grade.
Sub-300mm frame with protective cage for operation inside storage tanks, pressure vessels, ductwork and sewer infrastructure. Equipped with 4K low-light camera, LED illumination array and optional ultrasonic thickness sensor payload. Flight controller with optical flow and downward-facing LiDAR rangefinder for GPS-denied stabilization. 12-18 minute endurance per pack with hot-swap battery system.
Regulatory and industry requirements vary by jurisdiction and asset type. These reference points inform component selection.
Describe the asset type, standoff distance, required sensor payload and environmental conditions. We will frame a component stack matched to the inspection profile.
