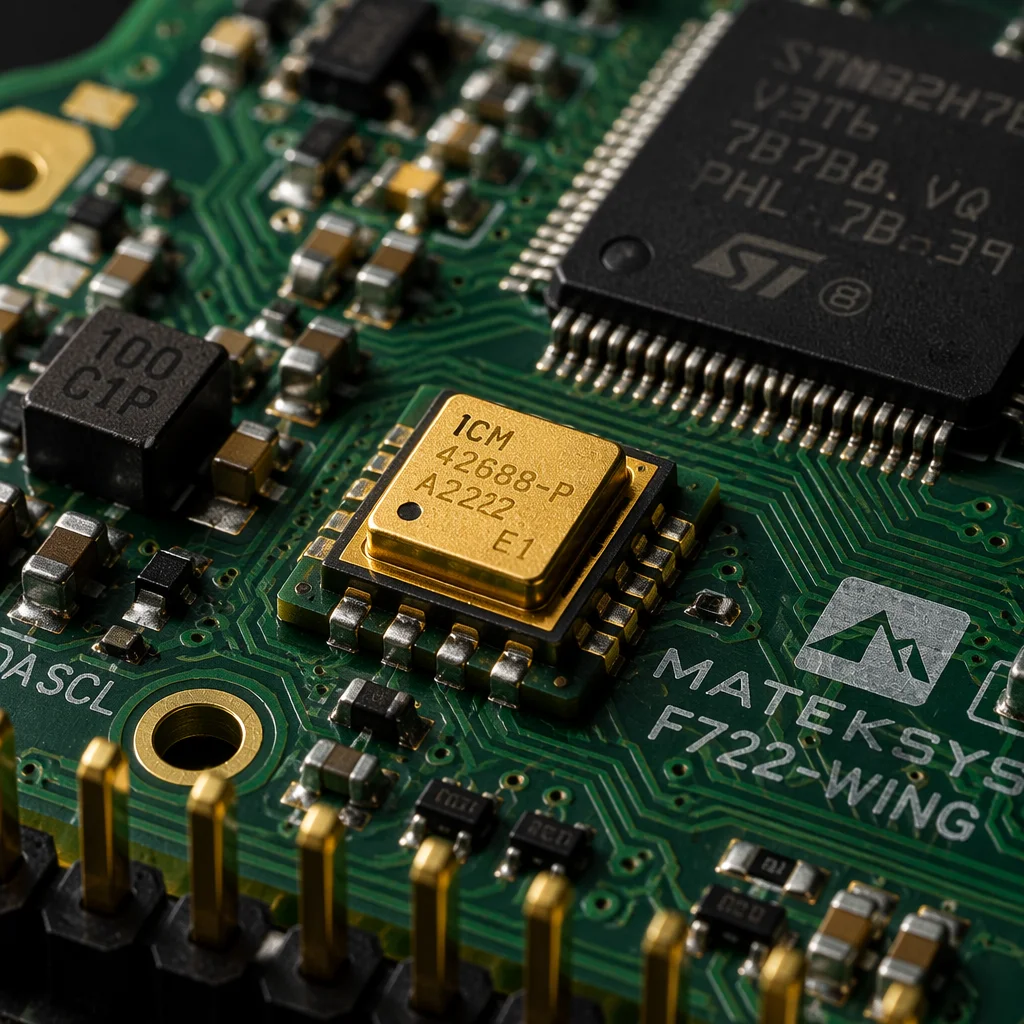

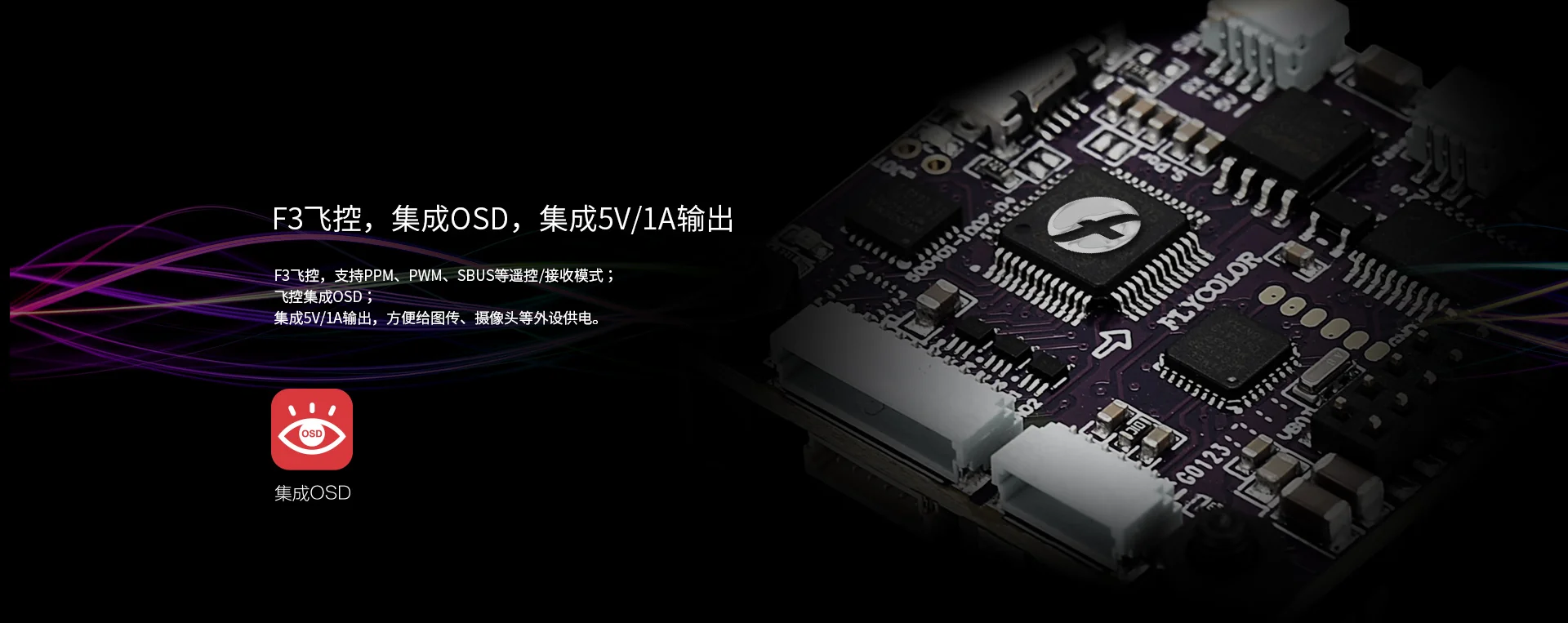

Concept illustration
The decision layer: flight controller hardware, sensor integration, navigation architecture and firmware alignment for the aircraft mission.
Every sensor reading, every pilot command and every autonomous waypoint passes through the flight controller. Selecting the right FC means aligning processor architecture, sensor fusion rate, I/O availability and firmware ecosystem with the mission profile — not just the aircraft size.

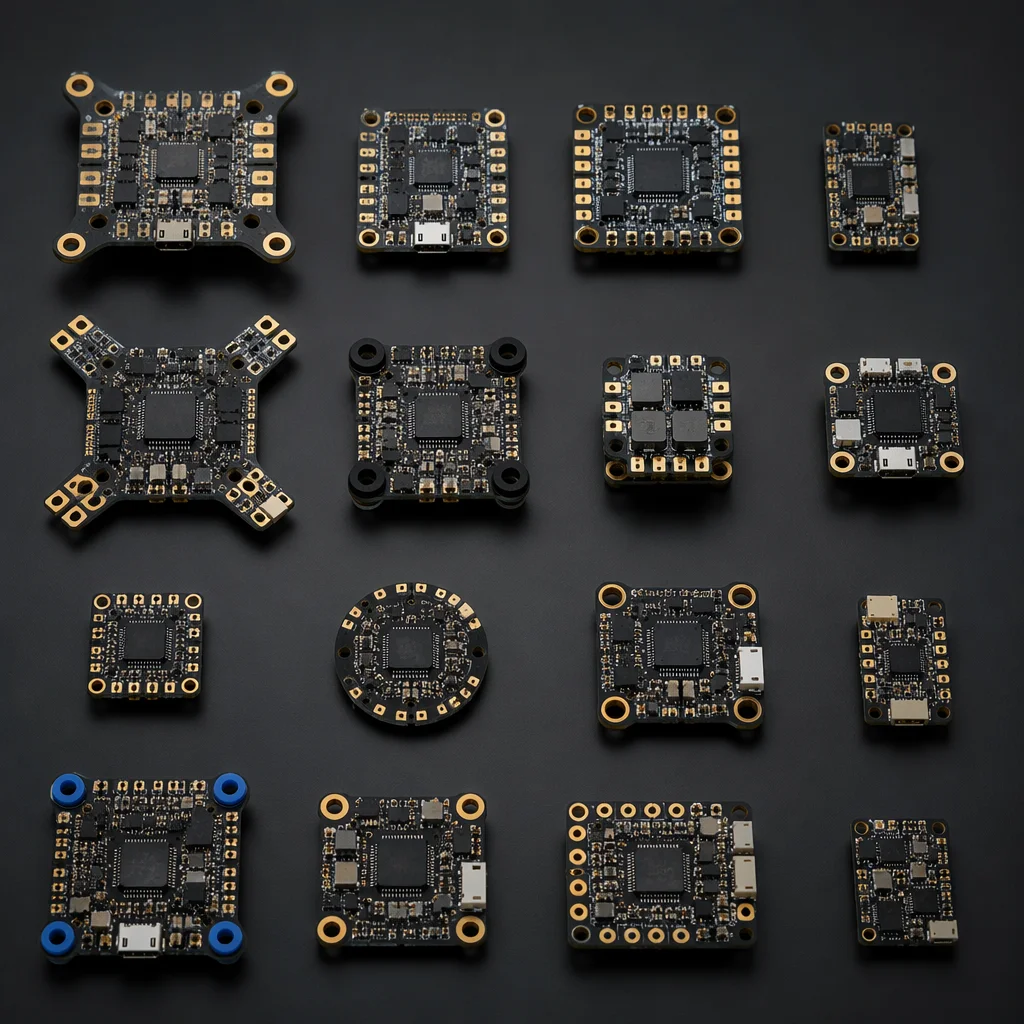

Concept illustration
The platform choice determines available flight modes, sensor support, redundancy options and the tooling ecosystem around configuration and tuning.
The most mature open-source autopilot ecosystem. Covers multi-rotor, fixed-wing, VTOL, helicopter, rover and boat on a single firmware family. Strong mission planning, geofencing, terrain following and precision landing support. Best choice for industrial applications that need proven autonomous workflow tooling and broad hardware compatibility across STM32H7 and Linux-based flight controllers.
A software-in-the-loop-friendly architecture with strong separation between flight core, communication layer and application modules. Preferred in research and development contexts where custom control algorithms, sensor fusion experiments or hardware-in-the-loop testing are part of the workflow. Runs on Pixhawk-format hardware with a growing Linux companion-computer ecosystem for onboard compute.
Optimized for multi-rotor agility with sensor fusion rates up to 8 kHz and PID loops tuned for responsive flight. The dominant platform in FPV freestyle and racing, with a large community and wide STM32F4/F7/H7 hardware support. Increasingly used in cinematography builds where precise attitude hold and rapid control response matter more than autonomous mission features.
Built on Betaflight's control heritage but adds GPS navigation, return-to-home, waypoint missions and altitude-hold modes. A practical middle ground for fixed-wing FPV platforms and multi-rotors that need basic autonomous navigation without the full complexity of ArduPilot or PX4. Strong OSD integration and reasonable position-hold performance on modest hardware.
Sensor selection and placement directly affect stability, navigation accuracy and failover behavior.
The core sensor triplet for attitude estimation. Modern FCs use redundant IMU pairs (ICM-42688, BMI270) with vibration-isolated mounting. Barometers (DPS310, MS5611) provide altitude reference with foam-covered ports to reduce wind noise. External compass modules mounted away from power wiring reduce magnetic interference — critical on larger airframes where high-current paths create significant local fields.
Multi-constellation GNSS modules (u-blox M10, F9) provide position and velocity with RTK centimeter-level accuracy where the mission requires it. Optical flow sensors add position-hold redundancy in GPS-denied environments. LiDAR or ultrasonic rangefinders deliver precision altitude data for terrain following, auto-landing and low-altitude hover — selecting the right range and beam pattern for the operating surface.
These are the spec dimensions we review when matching a flight controller to a build.
| Processor | STM32H7, F7, F4 or Linux companion — determines loop rate ceiling, sensor fusion complexity and onboard compute headroom for custom algorithms. |
|---|---|
| Sensor fusion rate | 1–8 kHz IMU update rate. Higher rates improve disturbance rejection for small, agile airframes; lower rates suffice for larger, slower platforms. |
| UART ports | 4–8 serial ports for GPS, telemetry radio, companion computer, serial RX and debug. Count must cover all peripherals plus one spare. |
| CAN bus | Enables distributed sensor and actuator architecture — particularly valuable on larger aircraft where wiring distance matters. |
| PWM outputs | 8–16 channels for motor ESCs and servo outputs. DShot-capable outputs preferred for multi-rotor motor control; standard PWM for fixed-wing servos. |
| Redundancy | Dual IMU, dual barometer, dual power input and triple-redundant sensor fusion (EKF3) for applications where single-point failure is unacceptable. |
A properly configured FC needs more than default parameters. The tuning process connects aircraft dynamics, pilot expectations and safety behavior.
Frame class, motor layout, ESC protocol, sensor orientation, battery monitoring and failsafe thresholds are set at the parameter level. Each platform has hundreds of parameters — but the core set that defines safe flight behavior is manageable when approached systematically. We review these against the aircraft configuration so critical settings are not left at defaults that assume a different airframe type or mission profile.
Rate PID loops for multi-rotors, attitude controllers for fixed-wing — each aircraft category has a different tuning methodology. Flight mode setup maps pilot switches to stabilized, altitude-hold, position-hold, auto and return-to-home modes. Failsafe programming defines behavior on radio loss, GPS loss and low battery — sequenced actions that must be tested, not just configured.
The right flight controller depends on aircraft type, mission autonomy requirements and the interfaces it must serve.
| Multi-rotor inspection | ArduPilot or PX4 on H7 hardware with RTK GPS, dual IMU, LiDAR rangefinder and 8+ PWM outputs for motor mixing. Position-hold accuracy and sensor redundancy are the priority. |
|---|---|
| FPV cinematography | Betaflight on F7/H7 hardware with high-rate gyro, barometer, GPS for return-to-home and BLHeli passthrough. Control responsiveness and OSD quality drive the choice. |
| Fixed-wing mapping | ArduPilot or INAV with airspeed sensor, multi-constellation GNSS, terrain following and large waypoint storage. Endurance, wind handling and mission reliability are the key factors. |
| VTOL hybrid | ArduPilot or PX4 on H7 with dual GPS, airspeed sensor, tilt-servo or lift-motor outputs and transition logic. The firmware must handle multi-rotor and fixed-wing control laws with seamless transition. |
| Research / custom | PX4 with companion computer running ROS 2, MAVLink bridge and custom offboard control. Modular architecture allows replacing or extending control modules without touching the flight core. |
Flight controller choices ripple into every other subsystem. These are the most tightly coupled layers.
FC protocol output (DShot, PWM, CAN) must match the ESC input. Voltage monitoring, BEC requirements and power distribution follow from the FC architecture.
ESC & PowerFC UART allocation, telemetry radio protocol (MAVLink, CRSF, SmartPort) and RC receiver interface are all defined at the FC level and must be coordinated with the comms architecture.
CommunicationsTell us the aircraft category, payload, operating range and autonomy requirements. We will map the FC platform, sensor architecture and interface plan to your build.
