Industry Challenges

Agriculture demands scale, chemical resilience and variable-terrain intelligence.

Agricultural UAVs operate in fundamentally different conditions than any other drone category. A spraying platform must carry 10-40 liters of liquid chemical payload while maintaining stable flight at 1.5-3 meters above crop canopy across undulating terrain. The propulsion system must deliver 15-25 kg of total thrust with enough margin to handle variable payload mass as the tank empties. Every exposed surface must resist corrosion from fertilizers, pesticides and herbicides. The flight controller must fuse radar or LiDAR altimeter data for true terrain following, not just barometric altitude hold, because a 1-meter altitude error changes spray drift, coverage uniformity and chemical efficacy across the field. Field-edge obstacles like power lines and windbreaks require obstacle-awareness sensors. Then there is the operational tempo: agricultural UAVs may fly 20-40 sorties per day during a narrow spray window, demanding hot-swap battery systems, rapid tank refill interfaces and component durability measured in hundreds of flight hours per season.

Deliver consistent spray coverage across variable terrain and crop heights
Protect electronics, motors and structure from corrosive agricultural chemicals
Maintain stable flight as payload mass decreases from full tank to empty
Operate at high duty cycles during short seasonal spray windows

Technical Requirements

Heavy lift, terrain awareness and chemical hardening define the ag stack.

Agricultural platforms are engineered for sustained high-power operation in chemically aggressive environments.

01 / Lift

Heavy-lift propulsion with duty-cycle endurance

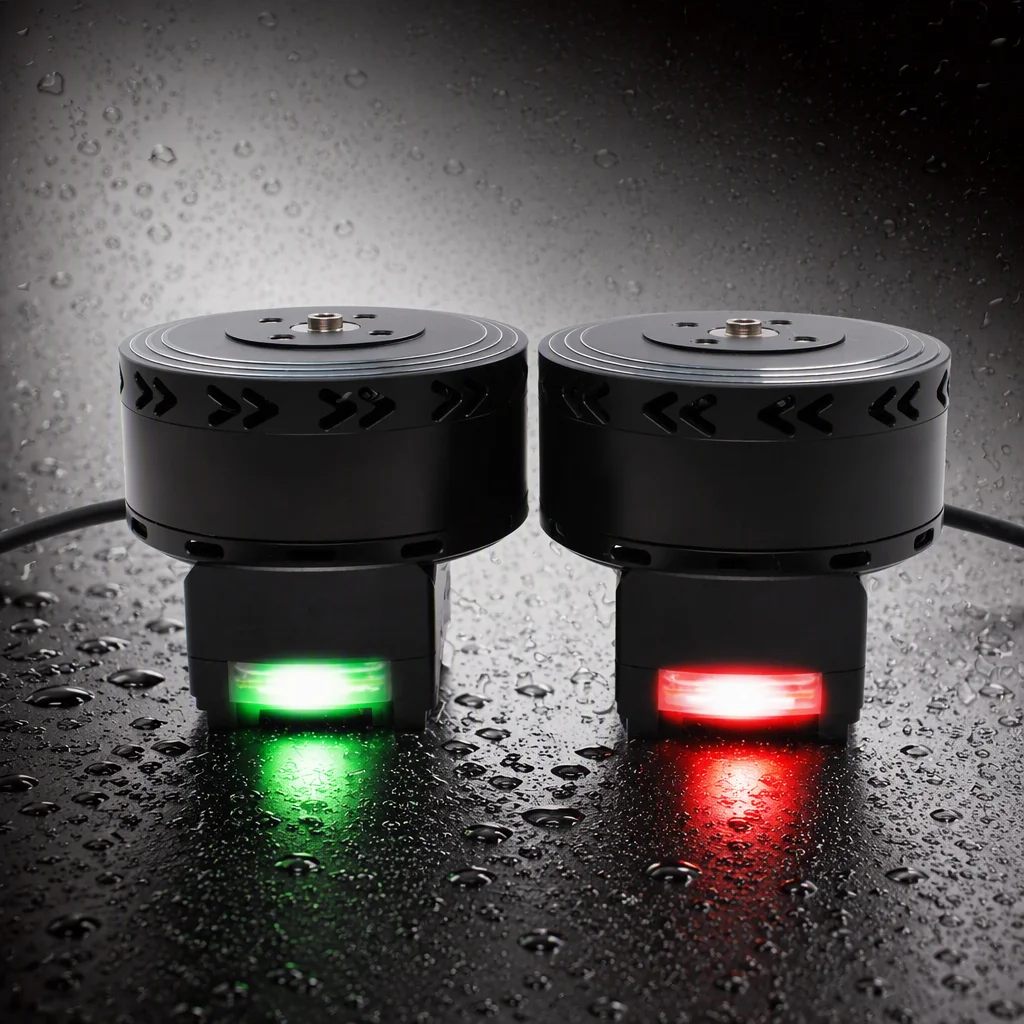

Agricultural multi-rotors require motors in the 6215-10015 class with stator sizes of 60-100mm, driving 24-34 inch propellers at 6S-14S voltage. Thrust-to-weight ratio must exceed 2.0:1 at maximum takeoff mass (aircraft + full tank). ESCs rated at 80-150A continuous with active cooling and thermal throttling protection are essential. Motor bearings must be sealed against chemical ingress, and winding insulation must withstand prolonged exposure to agricultural chemical mist. Hot-swap battery connectors and parallel battery configurations enable rapid turnaround between sorties.

02 / Navigation

Terrain-following radar or LiDAR altimeter

True terrain following requires a millimeter-wave radar altimeter or scanning LiDAR that measures distance to crop canopy (not ground) at 20-100 Hz update rate. The flight controller fuses this with barometric altitude, IMU data and GNSS to maintain a consistent above-canopy height regardless of terrain slope, crop height variation or barometric drift. This is critical for spray uniformity: a 0.5-meter altitude variation changes the effective swath width and droplet deposition pattern. Terrain-following also prevents ground strikes on ridgelines and maintains safe clearance under power lines at field edges.

03 / Spray System

Integrated spray nozzle and pump architecture

The spray system includes a chemical-resistant tank (HDPE or fiberglass), diaphragm or centrifugal pump (2-8 L/min flow rate), pressure-regulated nozzle boom with 2-8 atomizing nozzles, and a flow meter that reports real-time application rate to the flight controller. Spray width is determined by boom length (2-6 meters) and nozzle selection. The FC adjusts pump speed to maintain target application rate (liters per hectare) as groundspeed varies. Droplet size control via nozzle pressure or rotary atomizer affects drift characteristics; larger droplets reduce drift but require higher application volume for coverage.

04 / Sensing

Multispectral NDVI and crop health imaging

For crop monitoring variants, a multispectral camera (such as MicaSense RedEdge-MX or DJI Multispectral) captures calibrated reflectance in blue, green, red, red-edge and near-infrared bands. NDVI, NDRE and other vegetation indices are computed from reflectance data to map crop vigor, identify pest or disease stress, detect irrigation issues and estimate yield potential. The camera must include a downwelling light sensor for ambient light compensation and a calibrated reflectance panel for radiometric accuracy across multiple flights.

Recommended Component Stack

A system-level starting point for agricultural platforms.

Spraying, spreading and monitoring each pull from the same component categories with different payload weightings.

Flight Controller	Cube Orange+ / Pixhawk 6X with ArduCopter firmware; terrain-following enabled via radar/LiDAR rangefinder input; spray-system integration with flow-meter feedback and variable-rate application control; autonomous grid mission planning with spray-on/spray-off waypoint actions
Propulsion	8x 6215-210KV motors with 24-inch folding propellers (octocopter); 8x 80A continuous agricultural-rated ESCs with conformal coating; 12S 22,000-44,000mAh battery packs with hot-swap XT90-S connectors; thrust-to-weight ≥2.2:1 at full tank MTOW
Spray System	20-30L HDPE chemical-resistant tank; 4-6 L/min diaphragm pump with pressure regulation; 3-4 meter carbon fiber boom with 6-8 centrifugal atomizing nozzles; electronic flow meter with 0.1 L/min resolution; quick-connect fill port for rapid tank refill
Terrain Sensor	Millimeter-wave radar altimeter (Teraranger or equivalent) with 0.5-40m range; update rate ≥50 Hz; IP67 rated housing; fused with barometer and GNSS in EKF for crop-canopy height hold with ±0.3m accuracy
Airframe	Octocopter frame (1200-1500mm wheelbase) with foldable arms for transport; carbon fiber construction with chemical-resistant epoxy; sealed electronics bay with positive-pressure ventilation; quick-release tank and boom mounts for configuration change between spray and spread applications
Optional: Multispectral	MicaSense RedEdge-MX (5-band) or equivalent; downwelling light sensor and calibrated reflectance panel; camera trigger by distance from flight controller; compatible with Pix4Dfields or Agremo for vegetation index processing and prescription map generation

Typical Configurations

Three platform archetypes for agricultural missions.

These configurations represent proven starting points; tank capacity, swath width and terrain profile determine the final architecture.

Configuration / A

Crop Spraying Octocopter

Large-frame octocopter (1300-1500mm) with 20-30L spray tank, 4-6m boom with centrifugal atomizing nozzles, and millimeter-wave radar terrain following. Covers 8-12 hectares per hour at 4-6 m/s flight speed with 4-8m effective swath width. Autonomous grid mission with spray-on/spray-off at field boundaries. Hot-swap battery and quick-fill tank enable 20+ sorties per day. Flow-meter feedback adjusts pump rate for consistent liters-per-hectare application regardless of groundspeed variation.

Configuration / B

Seeding & Granular Spreader

Octocopter platform with granular spreader hopper (15-25 kg capacity) replacing the liquid spray system. Motorized spinner disc with adjustable aperture controls spread width (3-8m) and application rate. Flight controller manages spreader motor speed relative to groundspeed for uniform seed or fertilizer distribution. Terrain-following radar maintains consistent above-canopy height for predictable spread pattern. Suitable for rice seeding, cover crop establishment, pasture over-seeding and granular fertilizer application on terrain unsuitable for ground spreaders.

Configuration / C

NDVI Crop Monitoring Quad

Lighter-frame quadcopter (650-800mm) dedicated to multispectral survey rather than payload application. Carries a 5-band multispectral camera with downwelling light sensor for calibrated vegetation index mapping. Autonomous grid flight at 60-120m AGL covering 80-200 hectares per flight for NDVI, NDRE and chlorophyll index mapping. RTK GNSS for repeatable flight paths across multiple survey dates to enable time-series crop health trend analysis. Outputs prescription maps for variable-rate fertilizer, irrigation or pesticide application.

Environmental Protection

Chemical resistance and waterproofing standards for ag UAVs.

Agricultural chemicals are aggressive; component protection is not optional.

IP65 or higher rating for all exposed electronics enclosures: protected against low-pressure water jets and dust ingress
Conformal coating on ESC PCBs, flight controller boards and power distribution circuits to resist chemical corrosion
Sealed motor bearings (rubber shield or contact seal) with corrosion-resistant stainless steel races and chemical-resistant grease
Chemical-resistant tank and plumbing materials: HDPE, PTFE, EPDM and 316 stainless steel for all wetted components
Quick-disconnect fittings on all fluid lines for post-operation flushing with clean water to remove residual chemical
Sealed connectors (JST-SM or similar with rubber boot) on all external electrical interfaces; gold-plated contacts for corrosion resistance
Positive-pressure ventilation of main electronics bay with filtered air intake to prevent chemical mist ingress during spray operations
Post-operation cleaning protocol: fresh-water flush of spray system, wipe-down of airframe surfaces, inspection of seals and connectors
