UAV composite airframe inspection: NDT methods for carbon fiber drones

Composite structures are the material of choice for UAV airframes because they deliver the stiffness-to-weight ratio that endurance demands, the airframe materials guide compares carbon fiber, aluminum and G10 in detail. But the same laminated structure that makes carbon fiber strong also makes it hard to inspect: damage is internal, invisible from the surface, and does not announce itself with a bent part the way a metal component does. This guide is written for the maintenance and procurement teams who own that problem.

Why composite airframes need NDT: the defect classes that matter

Every composite airframe accumulates damage in service, and the damage types that threaten flight safety share one property: they are internal. The defect classes that matter for UAV structures:

• Delamination. Separation between adjacent plies of the laminate, the most common fatigue and impact damage mode in thin skins. A 10 mm delamination in a loaded wing spar region can reduce compression strength by 30–50% without any visible surface mark.
• Impact damage (barely visible impact damage, BVID). A low-energy impact, dropped tool, hangar bump, prop strike, landing strike, that leaves a barely visible dent or nothing at all, while the internal plies split and the core crushes. This is the class that grounds aircraft, because it is invisible and progressive.
• Voids and porosity. Air trapped during manufacture between plies or in the resin. Small distributed porosity reduces strength modestly but accelerates moisture ingress; large voids are stress concentrators.
• Disbond. Separation between the skin and the core (foam or honeycomb) in sandwich panels, the classic failure of control surfaces, hatch covers and tail booms after moisture ingress or repeated flexing.
• Fiber breakage. Actual fiber fracture from overload or severe impact: usually visible only once the surface ply is damaged, but internal fiber kinking from compression overload is not.

The consequence for a UAV fleet is asymmetric: a metal part bends and gets replaced; a composite part can fly for dozens of sorties at degraded strength, accumulating damage until a fatigue cycle exceeds the reduced margin. The propulsion testing guide covers the thrust-side validation that pairs with this structural side, and the safety and redundancy guide covers why structural margin is part of the redundancy argument, redundant electronics cannot save an airframe that sheds a wing in flight.

Tap testing: the field baseline that every operator should run

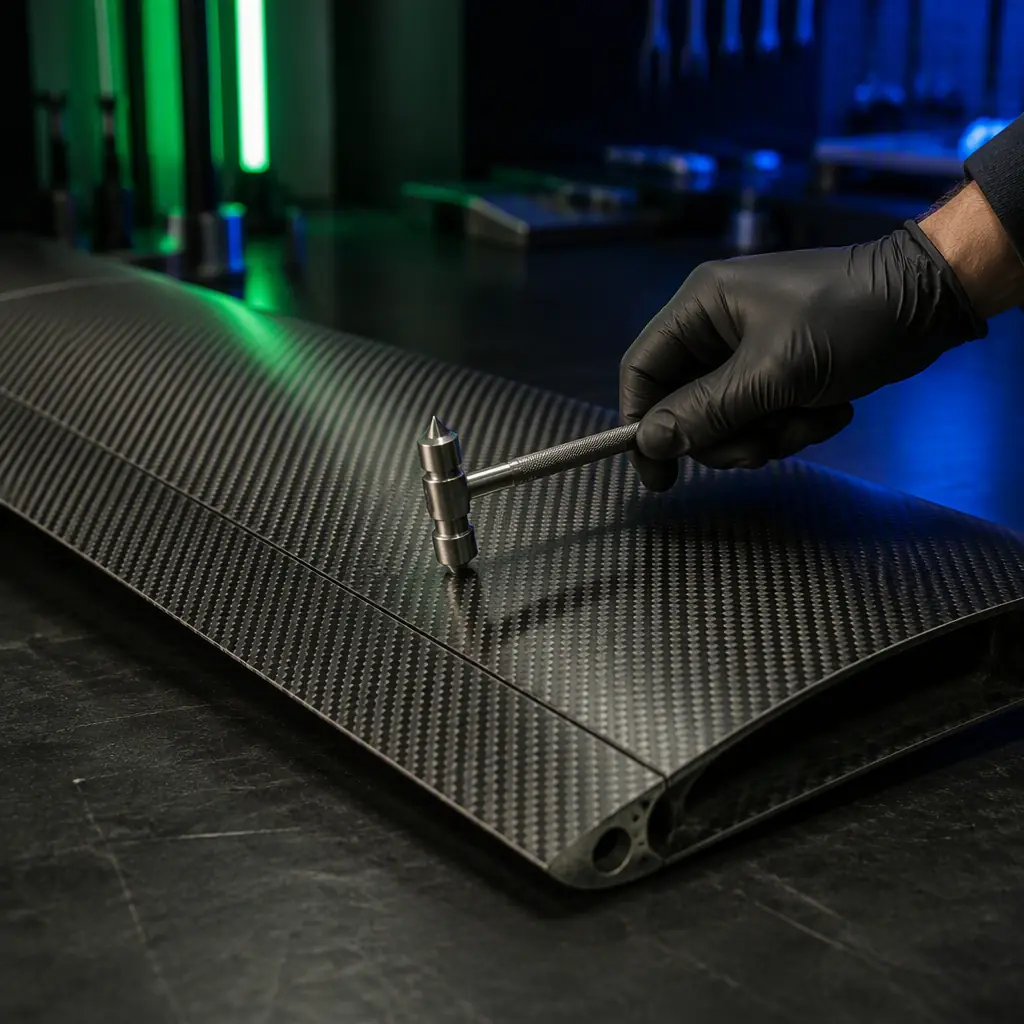

Tap testing (coin tap, or manual tap testing) is the oldest, cheapest and most portable NDT method, and it is still the right first line for UAV fleets. The principle: a tap on a sound laminate rings with a sharp, high-pitched tone; a tap over a delamination, disbond or crushed core produces a dull, low-frequency thud, because the local stiffness has dropped. A trained operator can detect disbonds and near-surface delamination of roughly 10–25 mm diameter in thin skins, and the whole check of a small airframe takes minutes with a coin or a small tap hammer.

What tap testing cannot do: it has no depth resolution (a defect at ply 2 and a defect at ply 8 sound similar), it is subjective (operator-dependent, no quantitative record), and it misses porosity, voids deep in thick laminates and fiber breakage. It is a screening method, not a measurement method. The disciplined version for fleets is a defined tap grid per airframe: every inspection checks the same 30–60 points at the same spacing, and any change in tone on a previously sound point triggers a deeper inspection. The spares and lifecycle planning guide is the framework for scheduling this baseline check into the fleet maintenance calendar, because the interval discipline matters more than the method.

Ultrasonic testing: A-scan, B-scan and C-scan

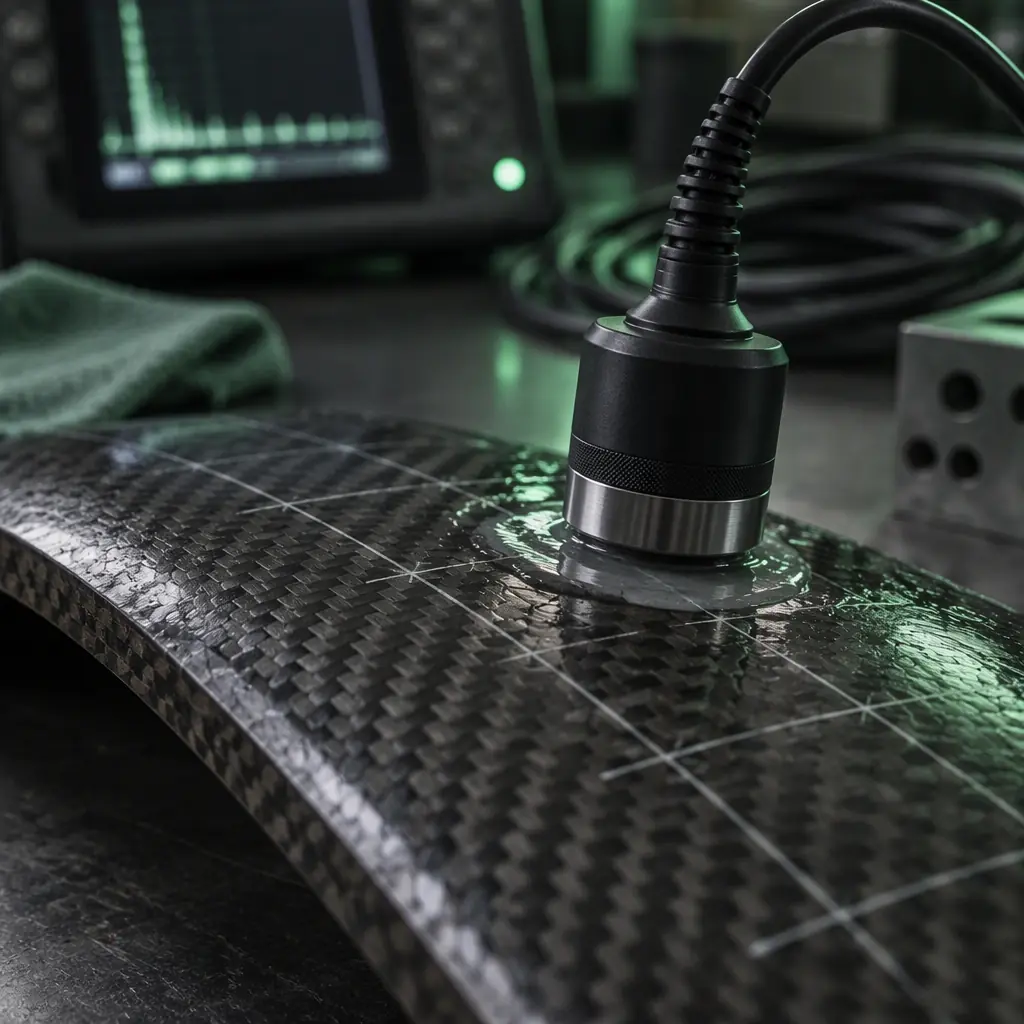

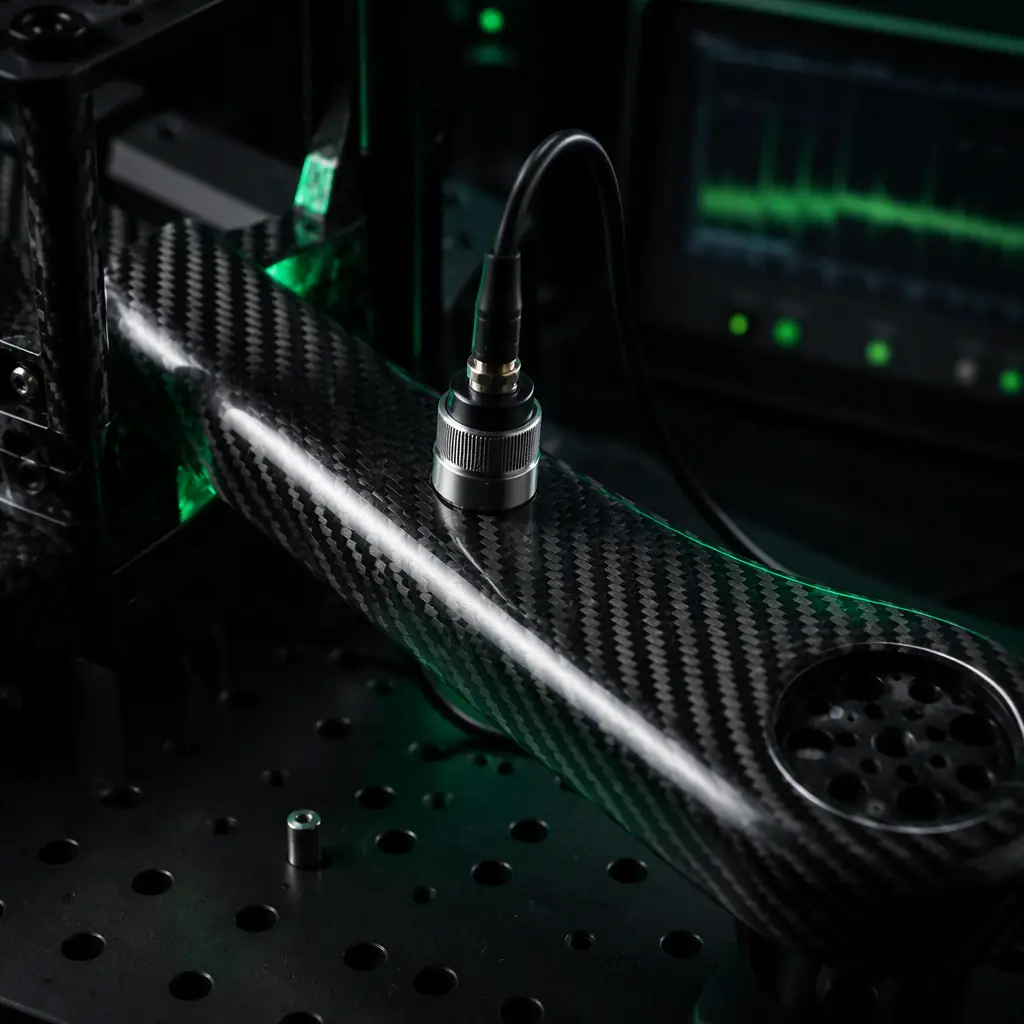

Ultrasonic testing (UT) is the workhorse of composite NDT and the method to move to when tap testing flags a defect or the asset is high-value. A transducer sends a high-frequency pulse (typically 1–10 MHz) into the laminate; the pulse reflects off the back wall and off any internal interface, a delamination, void or disbond reflects early and strongly. The three scan modes serve different purposes:

• A-scan. The single-point time-amplitude display. The operator reads the depth of a reflection directly, the classic tool for confirming and locating a tap-test indication. Portable, cheap, and the natural next step after tap testing.
• B-scan. A cross-section image along a line, depth on one axis, position on the other. Useful for mapping the extent of a disbond along a spar or a leading edge.

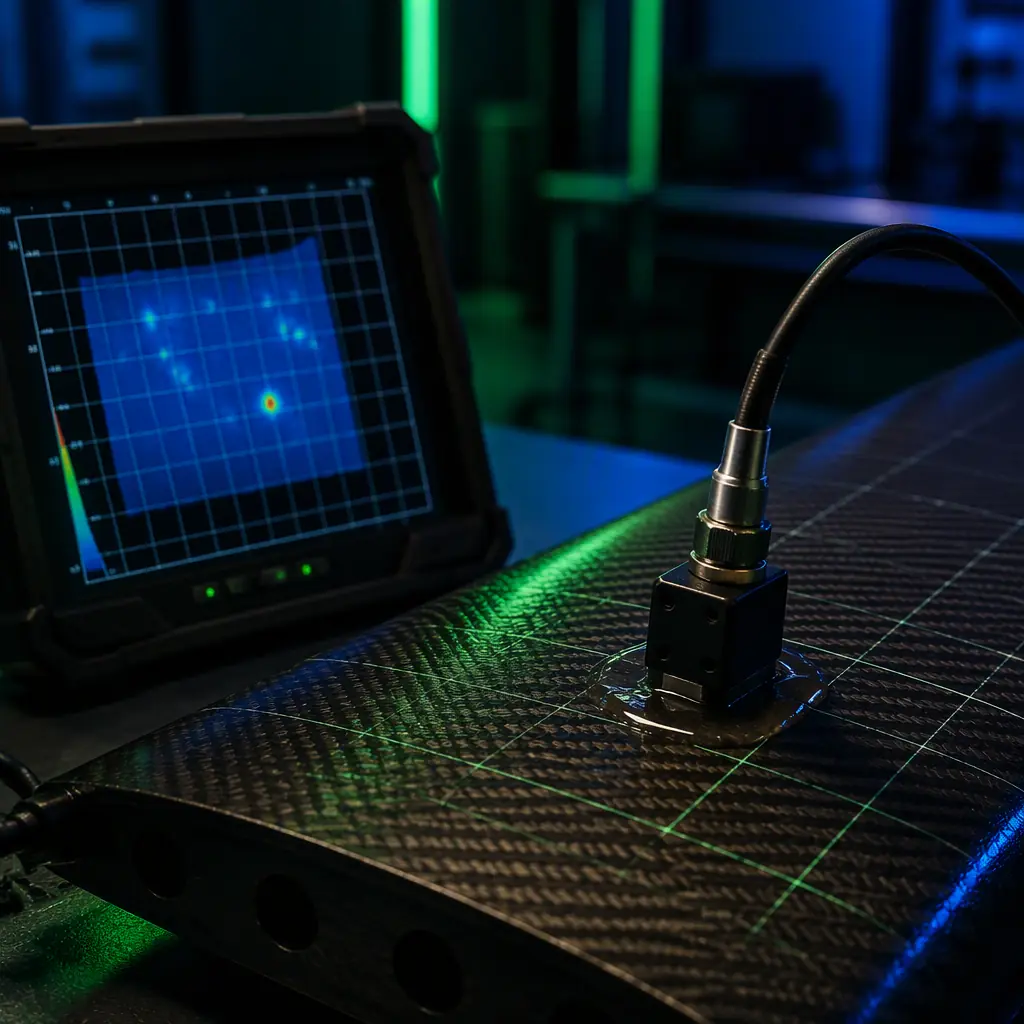

• C-scan. The full two-dimensional map of a panel, a top-down image in which each pixel shows the attenuation or reflection at that point, typically color-coded. C-scan is the definitive method for documenting the full extent of delamination or porosity over a surface, and it is what suppliers use for acceptance inspection of new airframes.

The detection limits for UT in thin UAV laminates (1–4 mm skins): delamination of 5 mm and larger in A-scan with a skilled operator, 3–5 mm reliably in C-scan with a proper scan rig, and distributed porosity down to about 1–2% void content by attenuation measurement. Coupling matters. A gel or water couplant is required between transducer and surface, which is why field UT on a dusty airframe is a two-step process: clean, then scan. The electronics manufacturing quality guide makes the parallel point for PCBs, X-ray and automated optical inspection on the board side, but the composite airframe needs its own inspection chain, and UT is its core.

Thermography and shearography: large-area screening

When the inspection target is a whole wing or fuselage half, point methods become too slow, and the two large-area methods come into play:

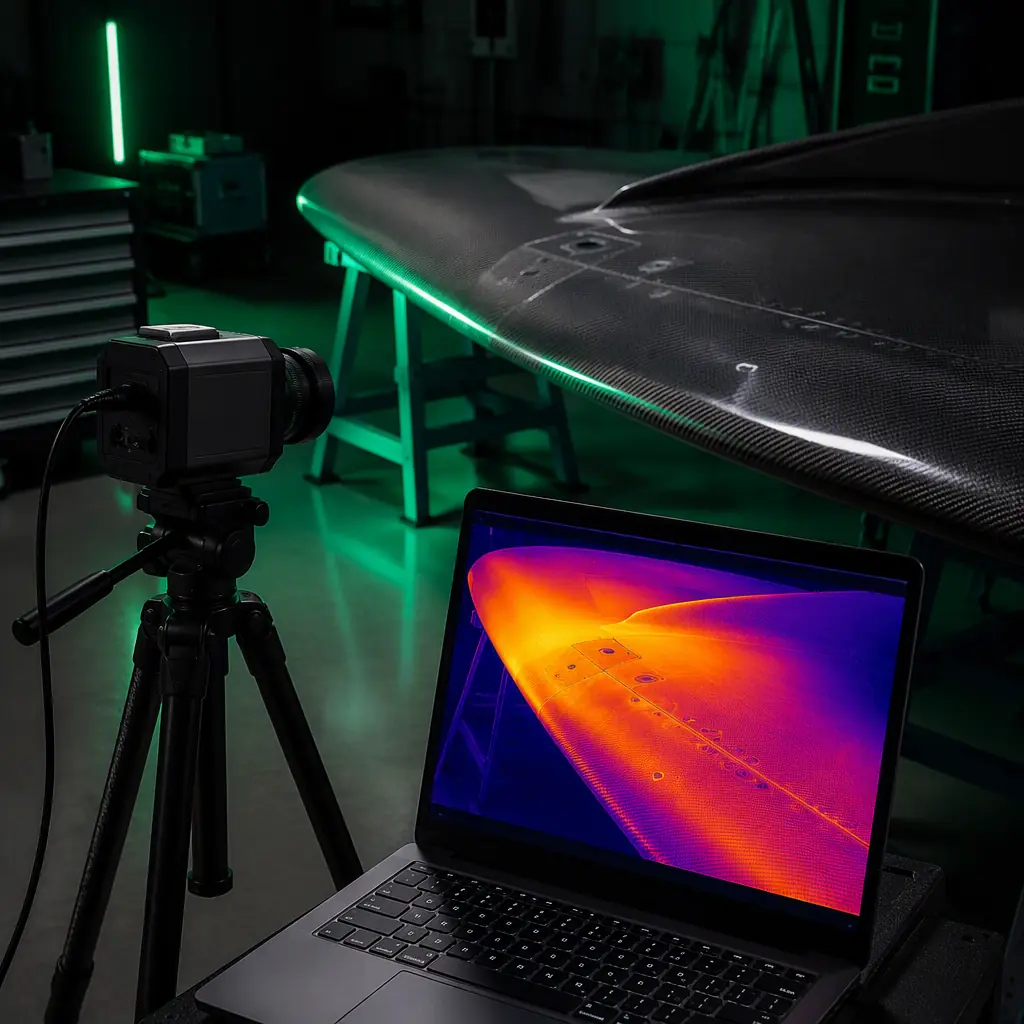

Thermography (infrared testing) flashes the surface with heat (a halogen or flash lamp) and records the cooling transient with an IR camera. Defects act as insulation: a delamination or disbond retains heat longer than sound structure, showing as a hot spot in the thermal sequence. Modern systems detect disbonds and near-surface delamination of roughly 5–15 mm in thin skins, and a full wing inspection takes minutes instead of hours. The limitations: depth penetration is limited (a few millimeters below the surface for quantitative work), and the method prefers thin, single-skin structures. The typical UAV airframe profile, which is why thermography is gaining ground in drone maintenance.

Shearography (speckle pattern interferometry) loads the part slightly, vacuum or thermal load, and measures the resulting surface strain field with a laser interferometer. Any subsurface defect distorts the strain field and appears as a fringe anomaly. Shearography is the aerospace-standard method for honeycomb sandwich disbond detection and can cover a large panel in a single image. It is more sensitive than thermography for disbond in sandwich structures, but the equipment is heavier and the interpretation is a specialist skill, appropriate for depots and suppliers rather than field operators.

The procurement-relevant pattern: tap testing for routine fleet checks, UT for confirmed indications and acceptance inspection, thermography for periodic whole-structure screening, shearography for sandwich-panel assets and supplier acceptance. The environmental monitoring guide and the industrial inspection guide cover the airborne inspection side of the same story. The aircraft that carries cameras to inspect infrastructure needs its own structure inspected with the same discipline.

X-ray and CT: seeing the full internal structure

X-ray radiography and computed tomography (CT) are the highest-fidelity composite inspection methods, and they are the acceptance standard for the most critical flight structures. Radiography detects density differences, voids, porosity, fiber distribution anomalies and metallic inclusions, and is fast and cheap per image. CT reconstructs a full 3D volume and can measure void content, fiber orientation and ply-by-ply structure with sub-millimetre resolution, which makes it the definitive method for failure analysis and for qualifying new airframe designs or new suppliers.

The limits are practical: CT requires a lab, a radiation license in most jurisdictions, and an airframe component small enough to fit the scanner volume. Most UAV spars, arms and fuselage sections do fit, but a whole 3 m fixed-wing aircraft does not. The cost per scan is orders of magnitude above tap testing, so CT is reserved for three moments: supplier acceptance of a new design, failure investigation after an incident, and periodic audit of a small sample from a fleet. The obsolescence management guide makes the same sampling argument from the component side, for a fleet that flies for years, the inspection budget follows the same logic as the spares budget: planned, sampled, and tied to the asset's criticality.

Choosing the method: detection capability and cost

The method selection is a four-way trade between detection capability, portability, cost per inspection and the skill required. For a UAV fleet, the practical ladder:

Method	Best at detecting	Detection limit (thin laminate)	Portability	Cost per airframe
Tap testing	Disbond, near-surface delamination	10–25 mm	Coin / tap hammer	Minutes, no equipment
Ultrasonic A-scan	Delamination depth, voids	5 mm+ (operator-dependent)	Handheld	Low
Ultrasonic C-scan	Full delamination / porosity map	3–5 mm	Scan rig	Moderate
Thermography	Disbond, near-surface defects, large areas	5–15 mm	IR camera	Moderate
Shearography	Sandwich disbond, large panels	Sub-mm strain anomalies	Lab / depot	High
X-ray / CT	Voids, porosity, internal structure, failure analysis	<1 mm (CT)	Lab only	High

The operational recommendation for most UAV fleets: tap testing on a fixed grid after every hard landing and on a calendar interval (monthly for daily-flown aircraft), A-scan confirmation of any tap-test change, annual thermography screening of high-value airframes, and CT acceptance or failure analysis for new designs and incidents. The mission planning guide is the reminder that inspection records belong in the fleet database beside flight logs. A fleet that tracks flight hours and landings per airframe can schedule inspections by event and usage, not just by calendar.

Inspection intervals: building NDT into the maintenance program

Composite inspection has no universal interval; it follows the aircraft's exposure. The drivers are: hard landings and ground impacts (the dominant damage source for multirotors), prop strikes, disassembly and handling cycles, exposure to UV and moisture, and the flight hours accumulated at high load. A practical interval framework:

• Event-driven. Tap test the affected area after any hard landing, prop strike, hangar impact or disassembly mishap, before the next flight, not at the next scheduled service.
• Calendar-driven. Full tap-grid sweep monthly for daily-flown aircraft, quarterly for weekly-flown aircraft. The spares and lifecycle guide covers how to fold this into the MTBF-based maintenance plan rather than treating it as an ad-hoc task.
• Annual. Thermography or C-scan screening of high-value airframes, the fleet's flagship aircraft, the ones carrying expensive payloads or flying beyond visual line of sight.
• Post-incident. Any unexplained vibration, trim change, or a flight incident with suspected structural loading triggers a full inspection before return to service. The aviation rule that no UAV fleet should skip because "the aircraft still flies."

The fleet management guide is the operational framework that carries these intervals. The telemetry and maintenance-logging infrastructure that records landings and events so the inspection trigger is automatic. And when an airframe fails inspection or reaches its damage threshold, the lifecycle planning decision applies: repair, replace the component, or retire the airframe, the same cost analysis as any other critical part.

Procurement: clauses that make an airframe inspectable

The most effective NDT program starts at procurement, because inspectability is a design property. Six clauses belong in the RFQ for composite airframes:

1. Manufacturing acceptance data. Every airframe ships with its C-scan (or equivalent) acceptance record, showing void content and the absence of delamination above the agreed threshold. Verification: the scan report with the scan grid and acceptance criteria stated.

2. Layup and material disclosure. The ply schedule, resin system, cure cycle and core material. Because NDT interpretation depends on knowing what is inside. Verification: the material and process specification, aligned with the airframe materials guide.

3. Damage tolerance statement. The manufacturer's statement of allowable damage: what impact energy leaves no detectable damage, what damage is detectable but allowable, and what requires repair. Verification: the damage tolerance test data. This is the number that turns a tap-test thud into a go/no-go decision.

4. Repair documentation. The manufacturer's repair manual, the materials, the cure process and the post-repair inspection method for each repairable area. Verification: the repair procedure document reviewed before acceptance.

5. Inspection accessibility. The design must allow inspection: removable panels, accessible spar caps, drain holes that also serve as inspection ports. Verification: the maintenance manual demonstrates access to every critical bond line.

6. Support for the inspection chain. The supplier's NDT capability and turnaround for depot-level inspections (C-scan, shearography, CT). Verification: the supplier's NDT procedure and facility list, the supplier evaluation checklist is the framework for scoring this response.

The certification and compliance guide adds the regulatory layer: for BVLOS operations and larger platforms, the airworthiness authority increasingly asks for the inspection and maintenance program as part of the operations approval. An airframe with a documented, scheduled NDT program is easier to certify than one with none. A composite airframe is a high-performance structure with invisible failure modes; the inspection program is not overhead, it is the price of the material's advantages.

What an NDT provider has to prove before you put a purchase order behind it

The procurement section above covers airframe clauses. This section covers the other half of the inspection chain: the loft, depot or third-party lab doing the scanning, and what their quotation is actually promising. Three composite frames we ran through pilot batches in the last two years all ended up at outside NDT shops, and every one of them started with a capability statement the lab was happy to send and which told us almost nothing. The list below is the version of that conversation we now insist on.

Lead with qualifications, not equipment. A lab with a C-scan rig and no certified operator is a lab that will hand you a picture you cannot defend in a damage assessment. Ask for the operator certificates with the specific method and level named (UT level II, RT level II, and the certification scheme they were issued under), and ask whether those certificates cover the material class in front of them. A certificate for aluminium-thickness gauging does not cover laminate porosity work.

Then ask for procedure documents per method, not a generic capability list. For ultrasonic inspection this means the written procedure that states transducer frequency, scan index, couplant, gain reference block and acceptance criteria, with the reference standard named. For tap testing it means the written acceptance description, since tap testing lives or dies on what the operator counts as a change. For thermography it means the excitation source, the dwell time, the camera specification and the emissivity assumption applied to a painted or gel-coated surface.

Next, the written report scope. A C-scan image file is not a report. We ask for the report to state, per scanned area, the scan extent in millimetres, the grid or index used, the reference standard, the smallest defect the procedure can detect in that material stack, and a disposition for every indication found: acceptable, monitor at next interval, or repair before next flight. If the lab cannot state the detection threshold, the report cannot be used to accept or reject anything, and the money spent on the scan buys a picture, not a decision.

Finally, calibration currency and traceability. Ask when the reference blocks were last recertified and against what, and whether the block material and thickness range match the part. A block that has drifted or does not match the stack produces readings that look precise and are wrong, which is worse than no reading at all.

Evidence item	What it has to name	What goes wrong without it	Cost of getting it wrong
Operator certification	Method, level, certification scheme, material class	Scan performed competently on the wrong material class	2–6 weeks to requalify an operator
Written procedure per method	Transducer frequency, scan index, couplant, gain reference, acceptance criteria	Results not reproducible; two labs disagree on the same part	1–3 weeks to author and review
Reference standard and block	Standard number, block material, thickness range, last recertification date	Readings look precise but are scaled against the wrong stack	Block recertification 1–4 weeks
Detection threshold statement	Smallest detectable defect in this material stack and geometry	Report cannot support an accept/reject decision	Re-scan, 1–2 weeks plus shipping
Per-indication disposition	Acceptable / monitor at interval N / repair before next flight	Every indication escalates to engineering; schedule slips	Engineering review 3–10 days per batch
Repair-and-reinspect path	Who repairs, who witnesses the re-scan, what the re-acceptance criteria are	Repaired part returns with no evidence it was ever scanned	2–4 weeks on a re-opened repair

The four composites-adjacent queries we see in search data (composite inspection, composite inspection system, composites NDT, aircraft composite inspection) are buyer queries: people deciding whether to build an inspection capability or buy the service. Answering that decision is what the table above is for. If you are weighing the in-house route, the honest arithmetic is that a C-scan rig plus a qualified operator plus reference blocks is a capital commitment that only pays back above a fleet size where inspections run weekly; below that, the outside lab wins on cost even after the travel and the paperwork.

Writing the inspection result into the airframe's continuing airworthiness record

A scan that is not recorded is a scan you will pay for twice. The single most common failure we see in composite fleet records is a tap-test grid performed at a hard-landing event, marked as "no findings" in a maintenance log, and then impossible to reconstruct two years later when the same arm shows a change. The record has to be built so that the next inspector, who may be a different company, can reproduce the grid and compare it.

That means the record per inspection event carries: the airframe serial and the arm or panel identifier; the inspection date and airframe hours; the method and procedure revision used; the grid definition (spacing, origin, orientation reference, number of points); the result per region in a form that allows comparison, not just a pass/fail; and the name and certification of the person who performed it. If a C-scan was used, the scan file is part of the record, with the file naming tied to the serial and the date, not to the job number alone.

The comparison problem is the one that bites. A tap test result of "acceptable" on a grid of forty points tells the next inspector nothing about which points were marginal. Recording a coarse severity per region (no change / change noted at marker / change with confirmed disbond extent) is enough to make the next event comparable, and it costs the operator two minutes per inspection. Without it, every subsequent inspection restarts from zero and the whole point of a baseline grid is lost.

For the airframe side, this also changes what you should ask a supplier for at delivery. The inspection-accessibility clause in the procurement layer above is only half the requirement. The other half is a delivery record that establishes the as-built inspection baseline: the grid definition for each inspectable region, the reference standard for the initial scan if one was performed, and any indications accepted at delivery with their extent. A supplier who cannot hand over a baseline has effectively transferred an unknown state to the operator, and the operator will pay for that ambiguity for the life of the aircraft.

What NDT can and cannot decide on a composite UAV airframe

There is a class of question that operators routinely bring to an NDT provider and that non-destructive inspection is structurally unable to answer. Being clear about the boundary is worth more than any additional method in the catalogue, because it stops a fleet from making a grounding decision on evidence that cannot support it.

NDT can find a defect and size it. It can establish that a bond line has an indication at a location, that a laminate has porosity in a region, that a spar cap has a change from the previous scan. It cannot, on its own, convert that finding into an allowable load. That conversion lives in the damage tolerance data, the design allowables and the repair scheme, each of which is a structural engineering output, not an inspection output. An inspection report that concludes "aircraft unserviceable" without referencing the manufacturer's allowable damage limits has overstepped, and an operator who accepts that conclusion without checking has handed a maintenance decision to a lab.

The second boundary is the one that catches fleets in the field: core crush and bond-line degradation under a thin skin can be present without producing a measurable surface signature for tap testing, and can sit below the detection threshold of an inexpensive A-scan. When the operating history includes a hard landing, a prop strike or a ground handling impact, the right response is not "tap test and release" but a method whose detection threshold is stated to be sufficient for the impact energy concerned. If no method on the approved list can claim that, the answer is a structural assessment, not a more expensive scan.

The third boundary is repeatability across providers. Two labs using different reagents, couplants, frequencies and index spacings will produce different indications for the same physical defect and neither is wrong. This is why the record matters more than any single result: a comparable series from one provider beats a scattered set of one-off inspections from three, and a fleet that changes providers every year loses the only signal that composite inspection really produces, which is change over time.
